Commercial facilities are shifting how they manage electricity. They no longer treat power merely as a fixed overhead cost. Instead, facility leaders manage it as an active, controllable asset. Escalating demand charges and grid instability drive this change rapidly across all industrial sectors. Furthermore, the integration of on-site renewables and new EV fleets creates unprecedented pressure on local infrastructure. You face real operational bottlenecks if you rely strictly on traditional grid power. This guide provides a concrete, vendor-neutral evaluation framework. You will learn how to deploy a C&I energy storage system effectively within your organization. We focus squarely on commercial realities, application viability, and implementation risks. By understanding these dynamics, you can make confident hardware and software choices. You will master how to align energy storage capabilities with your facility's specific operational needs safely.

Key Takeaways

  • C&I storage systems primarily deliver ROI through demand charge management (peak shaving) and Time-of-Use (TOU) arbitrage, rather than simple backup power.

  • Hybridizing existing diesel generators with a C&I ESS significantly reduces fuel consumption and maintenance OPEX by operating generators at optimal load curves.

  • Standardization around the LFP storage battery and modular architecture (e.g., 215kWh blocks) has streamlined procurement, but thermal management choices dictate lifecycle viability.

  • Successful deployment hinges on early navigation of local fire codes (NFPA/UL) and utility interconnection queues.

Framing the Business Problem: Aligning Facility Needs with ESS Capabilities

Cost Volatility

Commercial utility billing structures confuse many facility managers. Peak demand charges often dictate the final monthly cost. Sometimes these penalties account for up to 50% of your total utility bill. Traditional energy efficiency measures cannot easily solve this specific problem. Switching to LED lighting or upgrading HVAC controls reduces baseline consumption. However, these basic steps rarely prevent the sudden power spikes causing your highest demand charges. You need a targeted, dynamic approach to flatten these expensive usage spikes.

Grid Resilience Gaps

Next, consider grid resilience gaps carefully. Momentary power quality issues frequently disrupt commercial operations. Brief voltage sags or surges can damage sensitive manufacturing equipment instantly. These transient issues differ entirely from prolonged grid outages requiring extended backup power. You must define exactly which power problem you actually need to solve. Clarifying whether you need rapid power conditioning or a multi-hour microgrid heavily influences your hardware selection.

Capacity Constraints

Capacity constraints frequently block aggressive operational expansion. Adding heavy industrial machinery requires immense electrical capacity. Installing modern EV fast chargers demands similar grid availability. Local grid upgrades are often cost-prohibitive for private businesses. Utility companies also face severe transformer shortages, delaying capacity upgrades by years. You must find alternatives to traditional grid expansions if you want to scale your operations promptly.

Success Criteria

You need highly defined success criteria before purchasing any hardware. A successful deployment might target a 20% reduction in peak demand charges within twelve months. Alternatively, success could mean uninterrupted microgrid operation during a complete grid loss event. Clear goals prevent expensive hardware over-sizing. They also provide a concrete baseline for holding your integration partners accountable after commissioning.

Core Applications of a C&I Energy Storage System

Demand Charge Management (Peak Shaving)

Facilities face steep financial penalties when their energy usage spikes unexpectedly. A C&I ESS utilizes algorithmic software to monitor your facility loads continuously. The battery discharges its stored power automatically during peak load events. This action flattens your facility's demand curve perfectly from the utility's perspective. You avoid drawing expensive peak power from the external grid. As a result, you eliminate the high penalty multipliers on your monthly bill. This specific application remains the fastest path to positive financial returns.

Time-of-Use (TOU) Load Shifting

Utilities increasingly charge variable rates based on the specific time of day. TOU load shifting exploits these predictable pricing gaps. You charge your battery banks heavily during off-peak nighttime hours when electricity is cheap. Later, you discharge the batteries exclusively during peak tariff windows. This simple energy arbitrage strategy improves operational margins significantly. You effectively buy power low and consume it high.

Diesel Generator Hybridization & Microgrids

Many heavy commercial sites still rely on legacy diesel generators for resilience. Integrating an Energy Storage System with these noisy generators transforms site efficiency. The battery handles your low baseline loads silently and efficiently. The diesel generator only activates to support sustained heavy load spikes. This hybrid operational approach keeps the generator running at its optimal thermodynamic load curve. It extends your generator lifespan dramatically and slashes fuel consumption.

Solar PV Self-Consumption Optimization

On-site solar arrays often generate maximum power during midday hours. Unfortunately, standard facility demand might peak later in the late afternoon or evening. Storing excess daylight production prevents the wasteful clipping of your solar energy. It also prevents exporting your generated power to the utility grid at terrible wholesale rates. You save this stored green energy for evening operational shifts instead. This maximizes the value of your initial solar investment.

EV Charging Infrastructure Buffering

Adding commercial EV chargers introduces massive, unpredictable load spikes to your site. Multi-vehicle fast charging sessions can easily trigger punitive grid demand penalties instantly. Deploying intelligent storage creates a powerful local energy buffer. The battery dispenses massive energy into the vehicles quickly. It successfully prevents your local grid connection from registering a massive demand spike. You can roll out EV fleets without upgrading your main utility transformer.

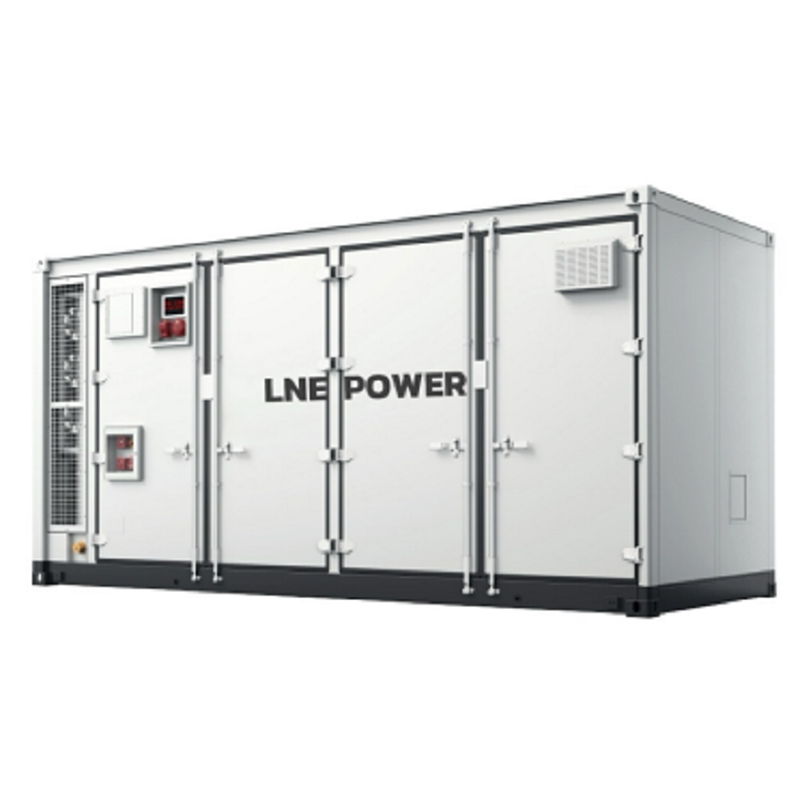

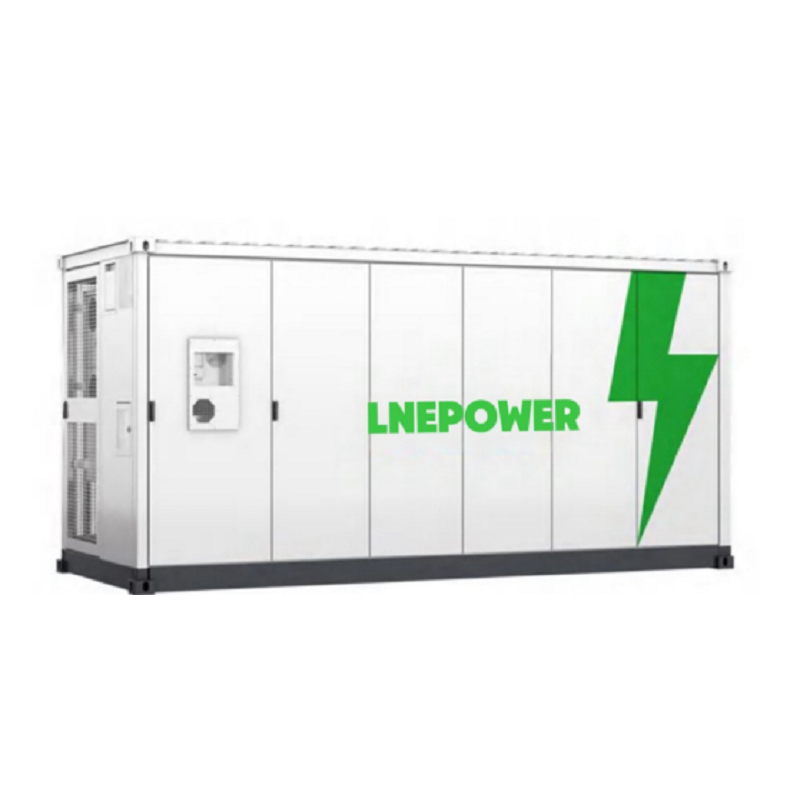

C&I energy storage system

Architectural Choices: Matching Hardware to Commercial Workloads

Chemistry and Safety Baselines

Battery chemistry dictates fundamental safety and performance limits. The LFP Storage Battery (Lithium Iron Phosphate) completely dominates the commercial market today. LFP offers superior thermal stability compared to legacy NMC (Nickel Manganese Cobalt) chemistries. It practically eliminates thermal runaway risks at the cell level. Furthermore, it delivers a considerably longer cycle life under heavy daily commercial use.

Thermal Management Methodologies

Batteries generate significant heat during rapid charge and discharge cycles. Traditional systems rely on basic air cooling. Air cooling uses fans to circulate ambient air over battery racks. It struggles heavily in extreme climates and leaves dangerous temperature variances between inner and outer cells. Conversely, liquid cooling uses a highly efficient closed-loop fluid system.

A 215kWh Liquid Cooling ESS serves as an excellent benchmark for modern modular units. Liquid cooling minimizes auxiliary power consumption dramatically. It ensures highly uniform cell temperatures across the entire pack. This precision extends system lifespan safely, even in harsh industrial environments. The comparison chart below illustrates the operational differences between standard thermal management and advanced fluid-based systems.

Specification Category

Air Cooling Methods

Liquid Cooling Architecture

Temperature Variance

High variance between outer and inner cells

Highly uniform temperature distribution

Auxiliary Power Draw

Consumes more energy to run fans constantly

Highly efficient closed-loop pump operation

Environmental Protection

Susceptible to dust and humidity ingress

Sealed design prevents contaminant entry

Lifespan Impact

Accelerated degradation in hot climates

Extended operational life across varied climates

Scalability and Modularity

You should avoid over-capitalizing on day one. Modern modular architectures let you start small. You can deploy a single integrated cabinet initially to handle current loads. As your facility loads grow, you simply cascade additional units together on the same communication bus. This framework matches capital deployment to actual operational needs perfectly. You only buy the capacity you need right now.

Key Evaluation Criteria for Vendor Shortlisting

Software Ecosystem (EMS/BMS)

Hardware acts only as a physical vessel. It remains useless without an intelligent governing software layer. The Energy Management System (EMS) requires sophisticated, predictive intelligence. You must evaluate if the EMS can actively predict dispatch needs. Excellent software ingests localized weather data and learns historical load profiles continuously. It anticipates peak demand events hours before they happen. This predictive nature prevents missed peak-shaving opportunities. You should also evaluate the user interface closely to ensure operators can read the dashboard clearly.

Safety and Compliance Certifications

Local fire codes leave no room for compromise or negotiation. You must demand strict, non-negotiable compliance certifications from any vendor. Require UL 1973 for basic battery pack safety validation. Mandate UL 9540 for the complete, integrated system package. Furthermore, require comprehensive UL 9540A fire test data. This specific test proves the cabinet can contain a thermal runaway event safely without spreading. You should also ensure the hardware features built-in fire suppression panels and off-gas detection sensors.

Warranty vs. Degradation Realities

You should maintain a healthy skepticism regarding blanket warranty claims. A generic marketing promise of a ten-year warranty rarely tells the whole technical story. Buyers must evaluate the guaranteed capacity retention strictly and legally. For example, will the battery genuinely retain 70% of its nameplate capacity at Year 10? You must demand metrics matching your specific daily cycling profile explicitly. A heavy, rapid 1C discharge degrades cell chemistry much faster than a gentle 0.5C profile. Ensure the warranty contract protects your specific use case.

O&M Support and Telemetry

Industrial hardware inevitably requires periodic maintenance and software patches. You must assess the vendor's strict requirements for 24/7 remote monitoring. They must offer robust, proactive maintenance Service Level Agreements (SLAs). Real-time telemetry allows remote engineers to spot minor cell voltage anomalies early. This proactive approach prevents minor thermal issues from causing total system downtime. Ask vendors exactly how quickly they dispatch local field technicians when a major fault code triggers.

Implementation Realities: Rollout Risks and Mitigation

Planning for physical deployment often uncovers hidden risks. Navigate these realities carefully to ensure a smooth transition.

  1. Interconnection Delays: Utility red tape poses the biggest schedule risk. Interconnection queues move notoriously slowly across most regions. You must initiate interconnection applications concurrently with your early feasibility studies. Never wait for final hardware selection to contact the utility company.

  2. Site Preparation and Footprint: Consider civil engineering realities early. You will need reinforced concrete pads to support heavy battery racks. Trenching for thick electrical conduit is mandatory. You must maintain strict clearance zones for fire safety access. Proximity to your main switchgear heavily dictates total installation costs.

  3. Supply Chain and Lead Times: Set realistic expectations for hardware delivery and commissioning. The entire lifecycle often takes 6 to 12 months from signature to activation. Transformers and specialized switchgear often face severe global backlogs. Final utility sign-off also delays the official activation date.

  4. Change Management: Facility operators must learn new digital workflows. They must train properly to interact with the new EMS dashboard safely. Operators must clearly understand the automated dispatch logic. If they manually override the system incorrectly, they might miss critical peak-shaving windows and trigger penalties.

Conclusion

A commercial battery deployment functions as a critical financial hedge against volatile energy markets. It acts as a primary technical enabler for facility growth, allowing you to bypass grid capacity limits gracefully. Treat this equipment as an active asset requiring careful sizing and operational planning. To move forward effectively, facility leaders should follow these immediate next steps:

  • Conduct a thorough load profile audit utilizing 15-minute interval meter data.

  • Identify exactly when and why your facility sets its highest monthly demand peaks.

  • Engage local Authorities Having Jurisdiction (AHJ) early to discuss fire setback requirements.

  • Request vendor proposals only after defining your exact daily cycling requirements and thermal constraints.

Taking these deliberate actions ensures you align capital investment precisely with operational realities. You will secure reliable power and predictable utility costs for the next decade.

FAQ

Q: What is the typical payback period for a C&I energy storage system?

A: Payback periods typically range from three to seven years. The timeline depends heavily on local utility tariffs and specific demand charge structures. Facilities in regions with steep peak penalty rates achieve faster returns. Available state incentives and federal tax credits also accelerate this timeline significantly.

Q: How does a C&I ESS differ from utility-scale storage?

A: Commercial systems sit behind the meter directly at the facility. They face severe footprint constraints and integrate closely with local building loads. Utility-scale storage operates in front of the meter as bulk grid infrastructure. Utility batteries span acres, whereas commercial units fit tightly into parking lots.

Q: Can a 215kWh Liquid Cooling ESS be installed outdoors?

A: Yes, these modular units are explicitly designed for outdoor installation. They carry robust IP54 or NEMA 3R weather ratings. The liquid cooling architecture excels in extreme ambient temperatures. It maintains safe internal cell temperatures far more effectively than air-cooled units facing direct summer sun.

Q: What happens to the LFP storage battery at the end of its life?

A: Lithium iron phosphate cells still hold significant capacity after ten years. They often transition into secondary use applications, such as low-demand backup power. Once fully depleted, commercial recycling pathways recover the valuable raw materials. Facilities process the lithium, iron, and copper for new manufacturing cycles.
