Key Features & Advantages
High Conversion Efficiency: Utilizing advanced mono-crystalline silicon and PERC technology, our cells achieve leading conversion efficiencies, typically exceeding 23.0%, ensuring maximum power output from limited space.

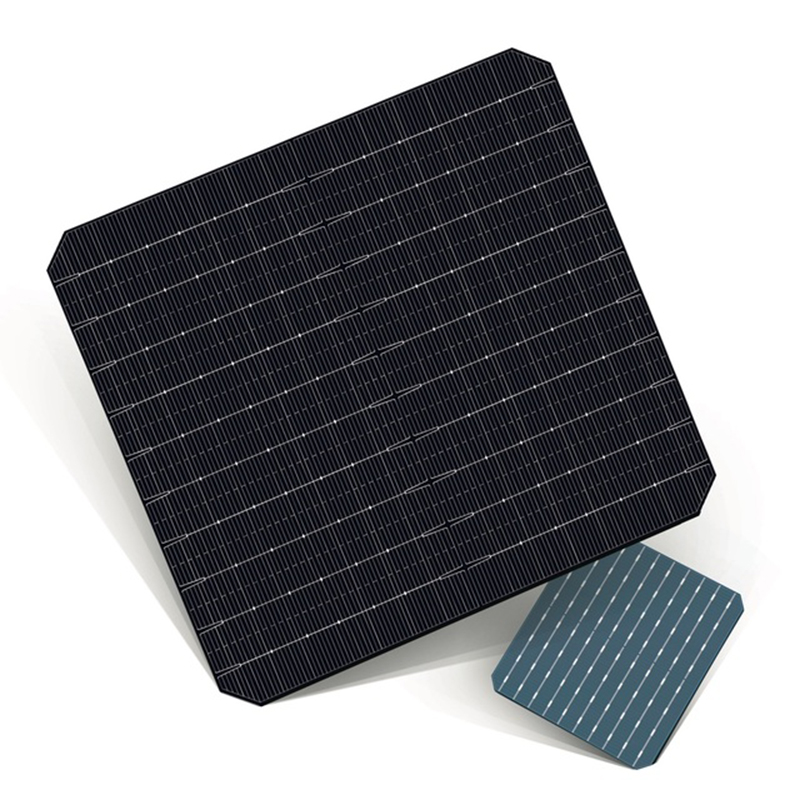

Optimal Size for Performance: The 182mm (M10) wafer format is engineered as the sweet spot. It offers significantly higher power output than previous generations (e.g., M2, G1) while maintaining excellent mechanical reliability and compatibility with existing manufacturing lines and system components.
Enhanced Light Absorption: The PERC structure features a rear-side passivation layer that reflects unabsorbed light back into the silicon cell, increasing light capture and boosting overall energy generation, especially in low-light conditions.
Superior Low-Light Performance: PERC technology reduces electron recombination, allowing the cell to generate more electricity during early morning, late afternoon, and on cloudy days.
High Reliability & Longevity: Built with robust materials and stringent quality control processes, our cells ensure long-term performance with minimal power degradation, typically guaranteed at less than 0.5% per year.
Reduced Levelized Cost of Energy (LCOE): The combination of higher efficiency, increased power density, and streamlined manufacturing leads to a lower cost per watt and a faster return on investment for end-users.
Technical Specifications
Parameter | Specification |
Cell Type | Mono-crystalline Silicon |
Technology | PERC (Passivated Emitter and Rear Cell) |
Standard Size | 182mm*182mm ± 0.25mm (M10) |
Thickness | 150μm ~ 160μm (Customizable) |

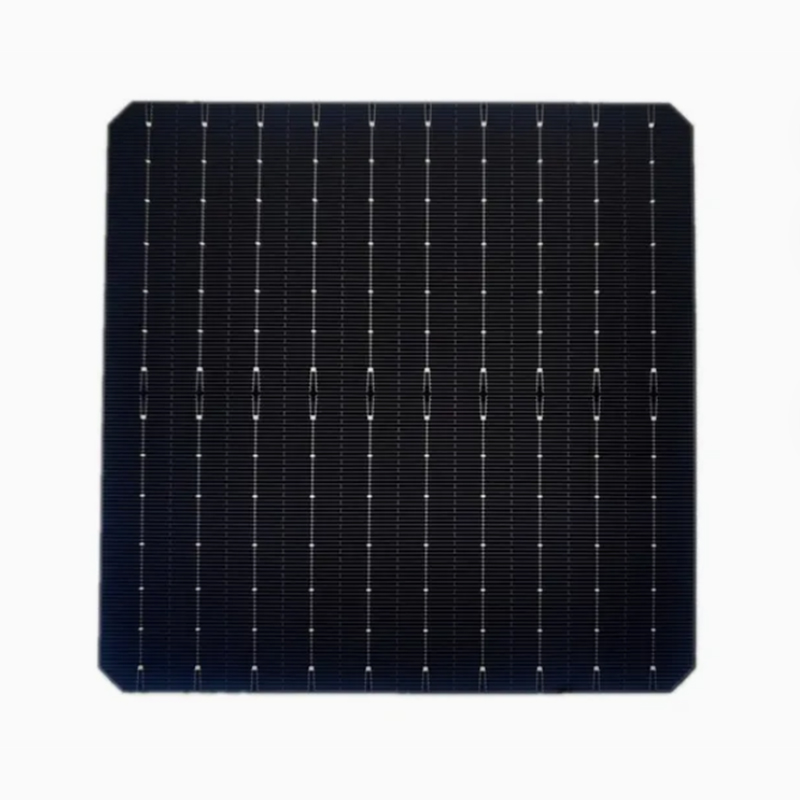

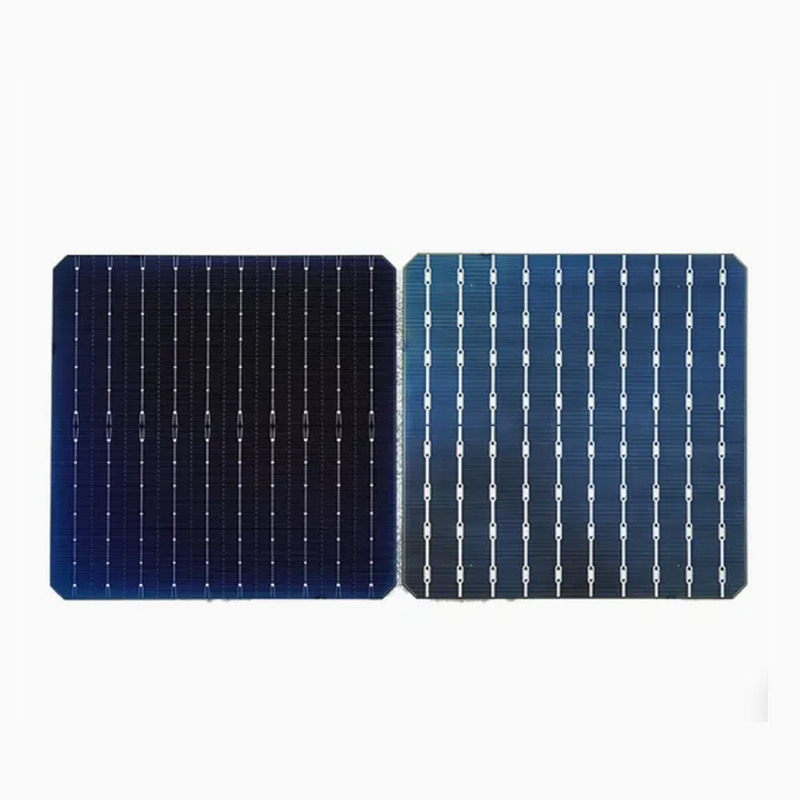

Front Side | Dark blue anti-reflective coating (ARC) |
Rear Side | Localized Aluminum BSF / Passivation film |
Main Busbars | 9BB to 16BB (SMBB) options available |
Typical Efficiency | > 23.0% |
Average Power Output | ~ 7.6W - 7.8W per cell |
Open Circuit Voltage (Voc) | ~ 710 mV |
Short Circuit Current (Isc) | ~ 12.8 A |
Temperature Coefficient (Pmax) | -0.34 %/°C ~ -0.36 %/°C |
Note: Specifications are typical values and can be customized based on customer requirements.
Applications
Our M10 PERC cells are specifically designed to be tabbed and stringed for the production of high-power solar modules:
54-Cell Modules: Ideal for residential rooftop systems (typical output: 410W - 430W).
72-Cell Modules: Perfect for commercial and industrial rooftops (typical output: 545W - 570W).
78-Cell Modules: The standard for utility-scale solar farms, achieving module power outputs exceeding 600W.
Quality & Reliability
Every batch of cells undergoes rigorous testing to meet international standards, including:
EL (Electroluminescence) Testing: 100% inspection for micro-cracks and defects.
Standard Test Conditions (STC): Performance verification under STC (1000W/m², AM 1.5, 25°C).
Certification: Compliant with IEC 61215 and IEC 61730 standards for safety and performance.
Why Choose Our M10 PERC Cells?
We are committed to delivering premium-quality photovoltaic products that drive the global transition to clean energy. By choosing our M10 PERC solar cells, you are selecting a proven, high-performance, and bankable technology that ensures the competitiveness and success of your solar modules
