The LNEPower Low Voltage Battery System 2.5L is a reliable, scalable, and smart energy storage solution, engineered for residential and small commercial energy storage integrators, solar EPC contractors, and renewable energy solution providers. Built with cobalt-free lithium iron phosphate (LiFePO4) cell chemistry, this low-voltage ESS delivers exceptional thermal stability, long cycle life, and reliable performance even in harsh operating conditions. With a single module capacity of 2.56kWh and flexible expandability from 2.56kWh up to 25.6kWh, it enables clients to tailor energy storage solutions to diverse customer needs, from single-home backup power to small commercial peak shaving systems.
This modular stackable energy storage system features a tool-free stacked design, allowing seamless capacity expansion from 2.56kWh to 25.6kWh by adding standardized battery modules. For installation partners, this reduces inventory pressure – you can stock universal modules and configure solutions for any customer demand – while the simplified installation process cuts on-site labor time and costs by up to 50% compared to traditional fixed-capacity battery systems.
Built with cobalt-free LFP battery cells, this system delivers unmatched thermal and chemical stability, eliminating thermal runaway risks and ensuring maximum safety for residential and commercial installations. It offers a cycle life of over 6000 cycles at 90% depth of discharge (DoD), with a standard 10-year warranty, reducing replacement costs and long-term maintenance burdens for end clients, and enhancing your brand’s reputation for reliable renewable energy solutions.
This low temperature charging ESS supports reliable charging at temperatures as low as -10°C, making it suitable for installation in cold climate regions where traditional battery systems suffer performance degradation. With an IP65 protection rating, it is fully dust-tight and water-resistant, supporting both indoor and outdoor installation, and adapting to harsh environmental conditions with consistent performance.
The integrated intelligent BMS (Battery Management System) provides real-time monitoring, overcharge/over-discharge protection, and cell balancing, maximizing system safety and performance. It supports remote firmware upgrades, eliminating the need for on-site maintenance visits, reducing after-sales service costs for partners, and enabling seamless system optimization throughout its service life.
Parameter | Specification |
Battery Chemistry | Cobalt-Free Lithium Iron Phosphate (LFP) |
Single Module Capacity | 2.56kWh (51.2V Nominal) |
Expandable Capacity Range | 2.56kWh – 25.6kWh |
Nominal Charge/Discharge Current | 25A |
Max. Charge/Discharge Current | 48A |
Max. Charge/Discharge Power | 2.45kW |
Cycle Life (90% DoD) | 6000+ Cycles |
IP Protection Rating | IP65 |
Operating Temperature Range | -10°C – 50°C |

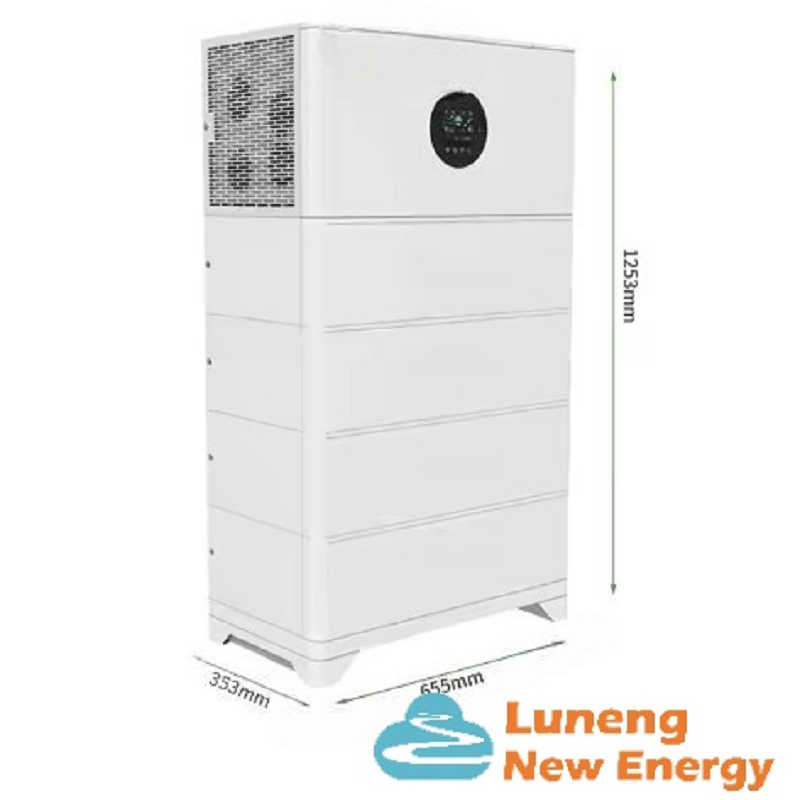

Single Module Dimensions (W×D×H) | 650mm × 260mm × 185mm |
Single Module Weight | 28kg |
Communication Ports | CAN/RS485 (Optional) |
This residential low voltage LiFePO4 battery is designed for clients in the renewable energy industry, with core use cases including:
Residential backup power and grid-tied solar + storage systems
Small commercial and office peak load shifting & backup power projects
Off-grid and remote area solar energy storage installations
Electric vehicle (EV) charging infrastructure support
Rural electrification and standalone microgrid systems
Telecom base station backup power solutions
The LNEPower 2.5L Low Voltage Battery System complies with international IEC 62619, IEC 62040, and CE safety standards for energy storage systems, with certified IP65 protection for outdoor use. We provide a standard 10-year product warranty for all modules, covering material and workmanship defects, with comprehensive technical support for system integration, installation, and after-sales service for our global partners.
This modular low voltage ESS supports seamless capacity expansion from 1 to 10 standardized modules, reaching a maximum total capacity of 25.6kWh, to match the growing energy demands of residential and small commercial users.
Yes. The system is equipped with standard CAN/RS485 communication ports, making it fully compatible with most mainstream residential and commercial hybrid solar inverters on the market, simplifying system integration for our partners.
Absolutely. With an IP65 protection rating, the system is fully dust-tight and resistant to low-pressure water jets, making it suitable for both indoor and outdoor installation, even in harsh and variable environmental conditions.
The stackable, tool-free design eliminates the need for complex custom mounting solutions, cutting on-site installation time by up to 50%. It also reduces inventory costs, as standard modules can be deployed for projects of any size, from 2.56kWh to 25.6kWh.
