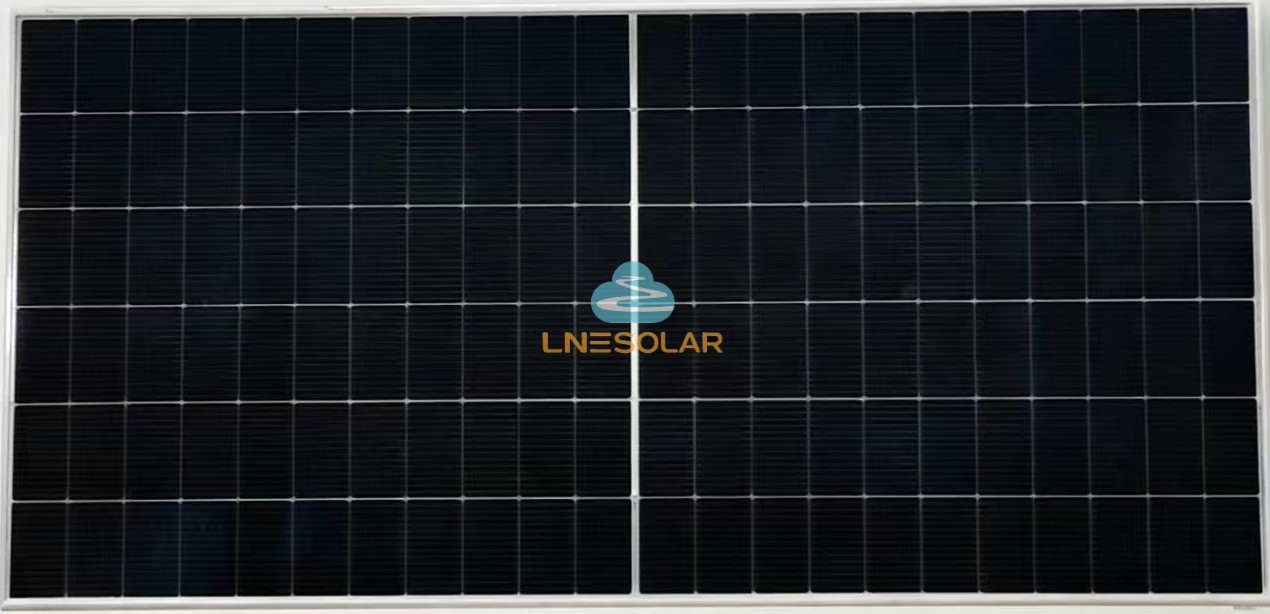

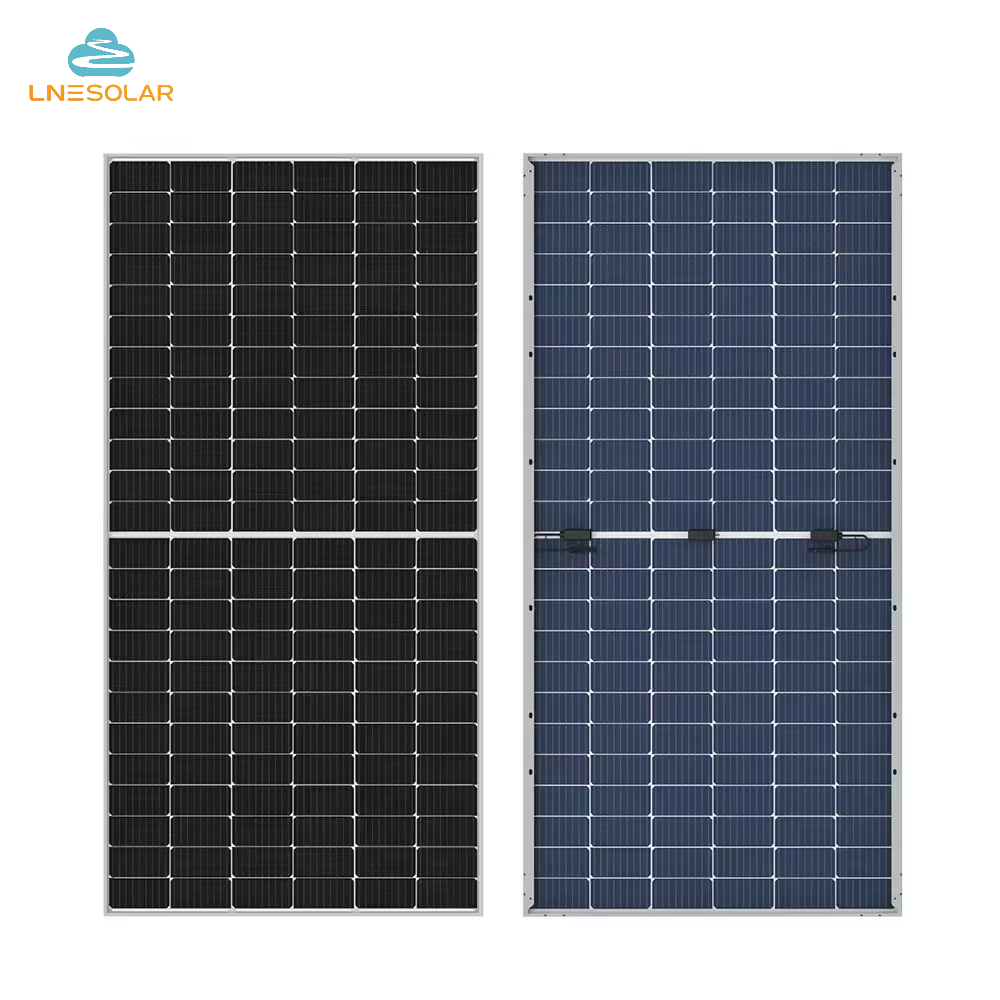

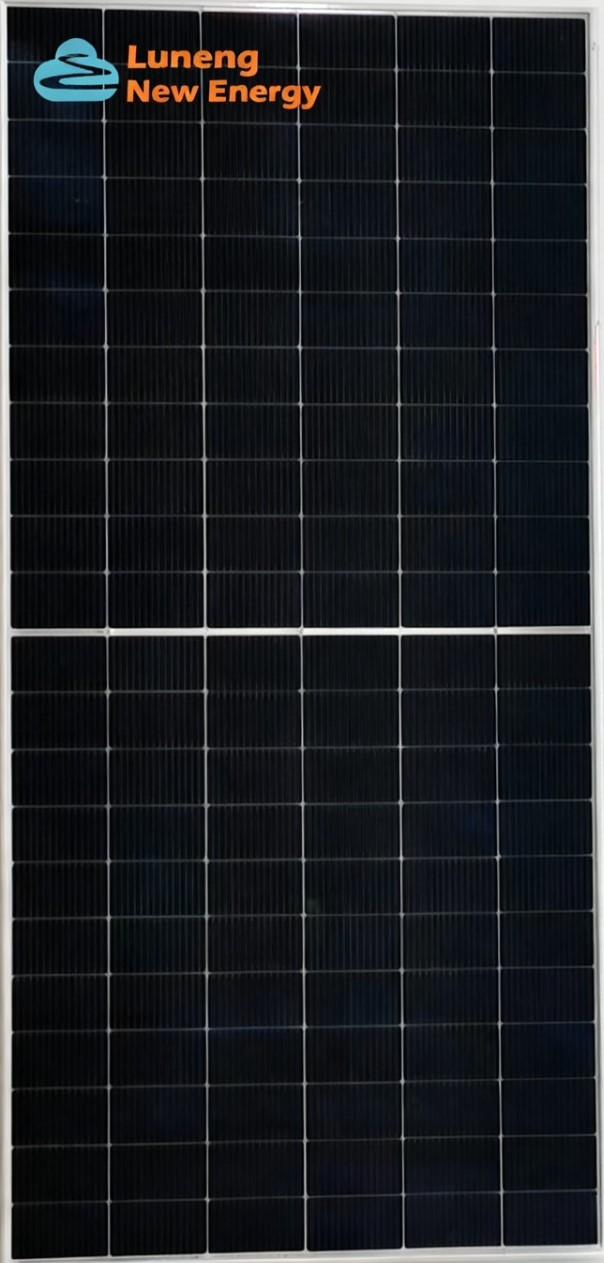

BIPV Series Metal Solar Panel

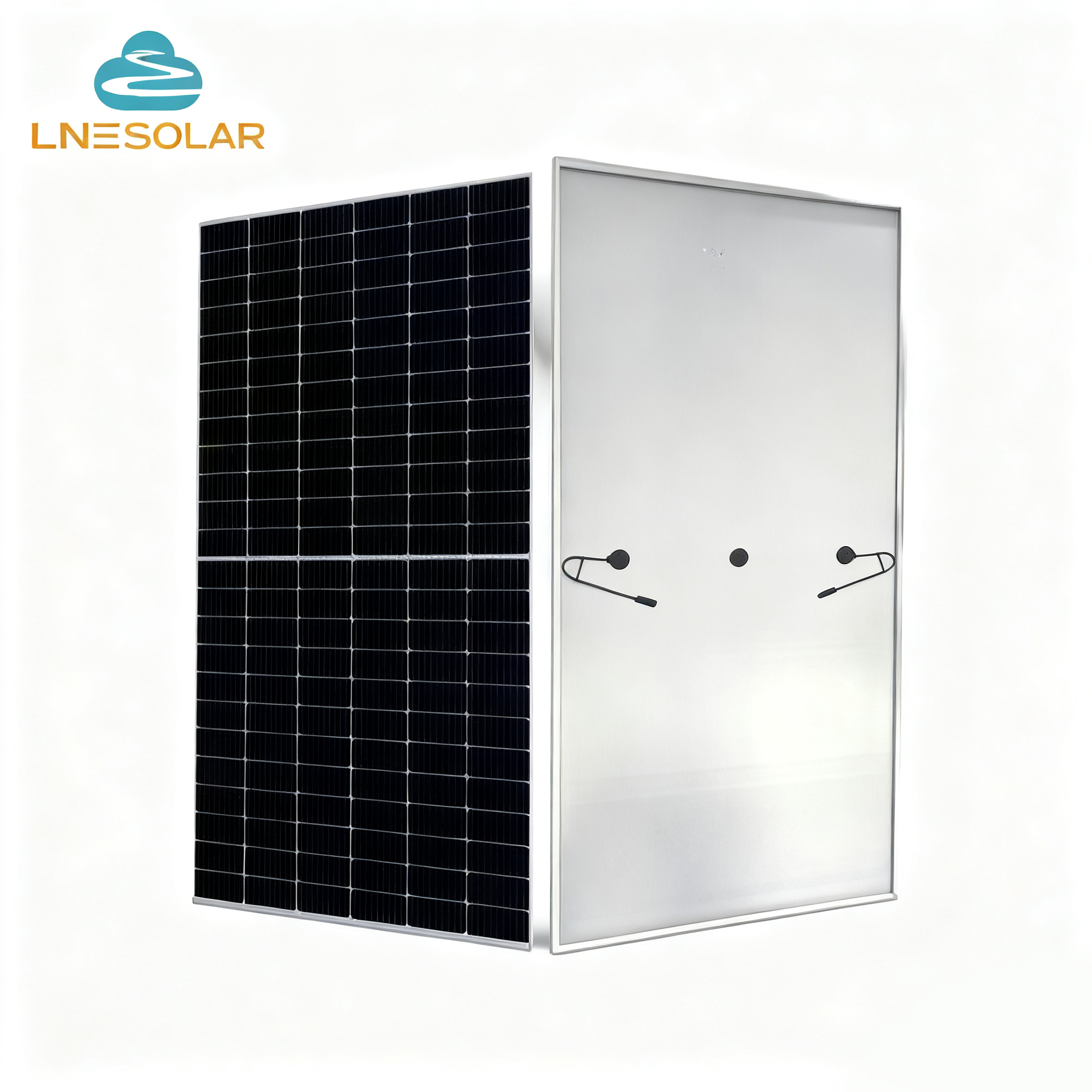

Step into the future of architectural energy with a solar module meticulously designed to harmonize with modern structural aesthetics. Upon inspection, the sleek, anodized aluminum frame feels incredibly robust to the touch, framing a pristine 2.0mm coated glass surface that captures sunlight with minimal reflective glare. Beneath this visually striking and smooth exterior lies a true powerhouse of energy generation. The innovative zinc-aluminum-magnesium metal backsheet not only provides a rigid, premium metallic finish but also acts as a highly efficient thermal dissipator, ensuring the panels remain cool and operate flawlessly even under the relentless heat of the midday sun. When integrated into a commercial facade or an expansive rooftop, the visual transition is entirely flawless, completely eliminating the bulky, bolted-on appearance characteristic of traditional solar arrays. Every edge, corner, and connection point speaks of precise craftsmanship, offering a solid, reliable presence that architects, project developers, and construction engineers can trust implicitly. This dual-purpose building material effectively transforms passive structures into active, revenue-generating power plants, delivering substantial long-term financial value without ever compromising the original architectural vision.

Key Benefits

• Model N.O: LNM-N210R625

• SMBB Half Cut Cell Technology

• LECO N-TYPE Cell Technology

• Excellent Anti | PID Anti-PID | LID Low | LID Performance

• Higher Power Output | Lower BOS & LCOE

Higher power output with stable performance (625W)

Enhanced durability and resistance through metal backsheet technology

Excellent thermal dissipation, ensuring long service life

Flexible application in both residential and commercial BIPV projects

LUNENG N-TYPE: Standard warranty 15 years, can be extended up to 20 years

MECHANICAL CHARACTERISTICS

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m2 celltemperature 25°C AM1.5G

NM0T: Irradiance 800W/m ambient temperature 20C  wind speed 1m/s AM1.5G

Usage Instructions
This solar panel is engineered for use in both residential and commercial projects. It should be mounted on certified support structures following standard PV installation guidelines. To maintain maximum performance, keep the glass surface clean and ensure proper ventilation around the module.

Application Scenarios

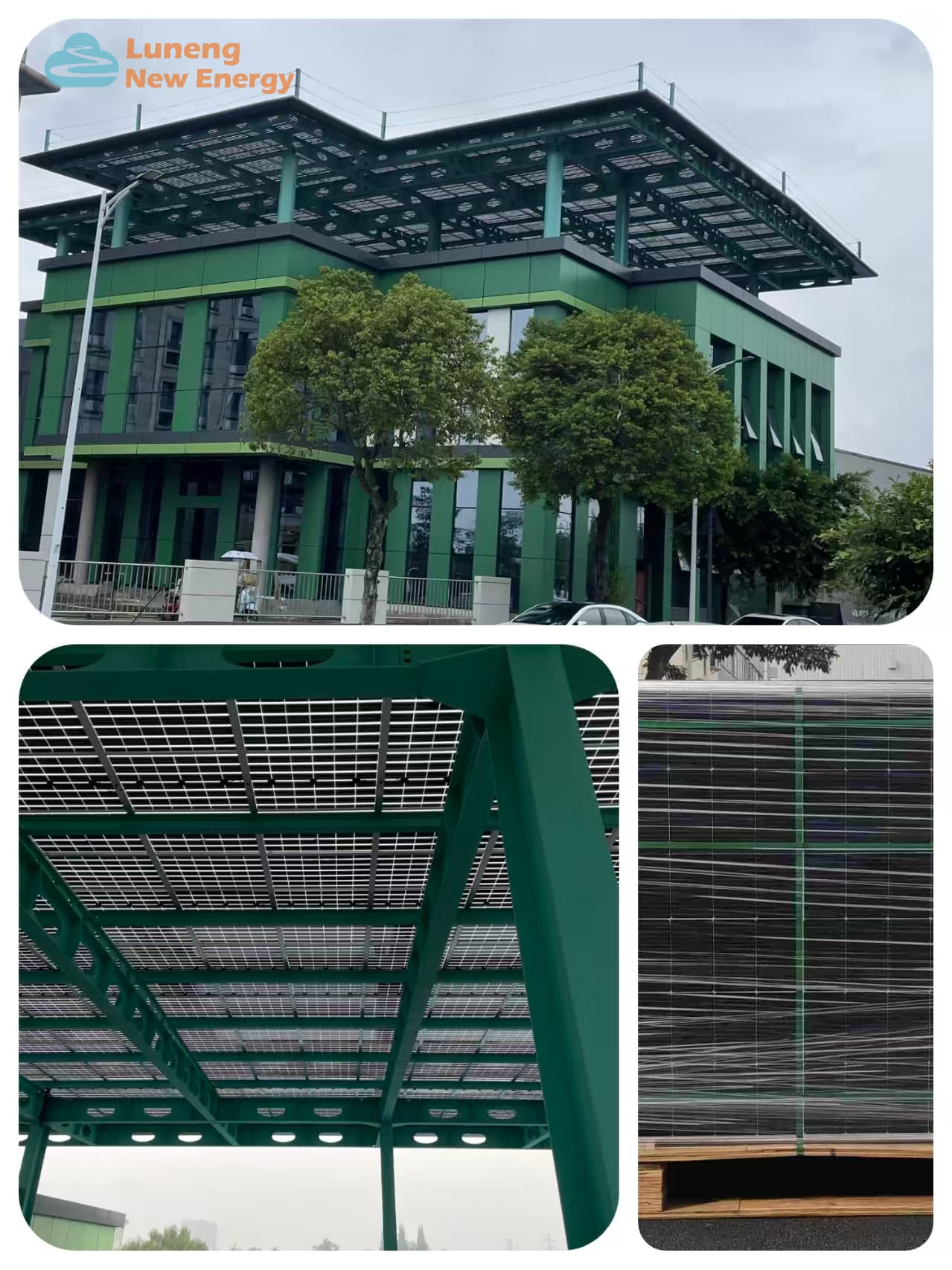

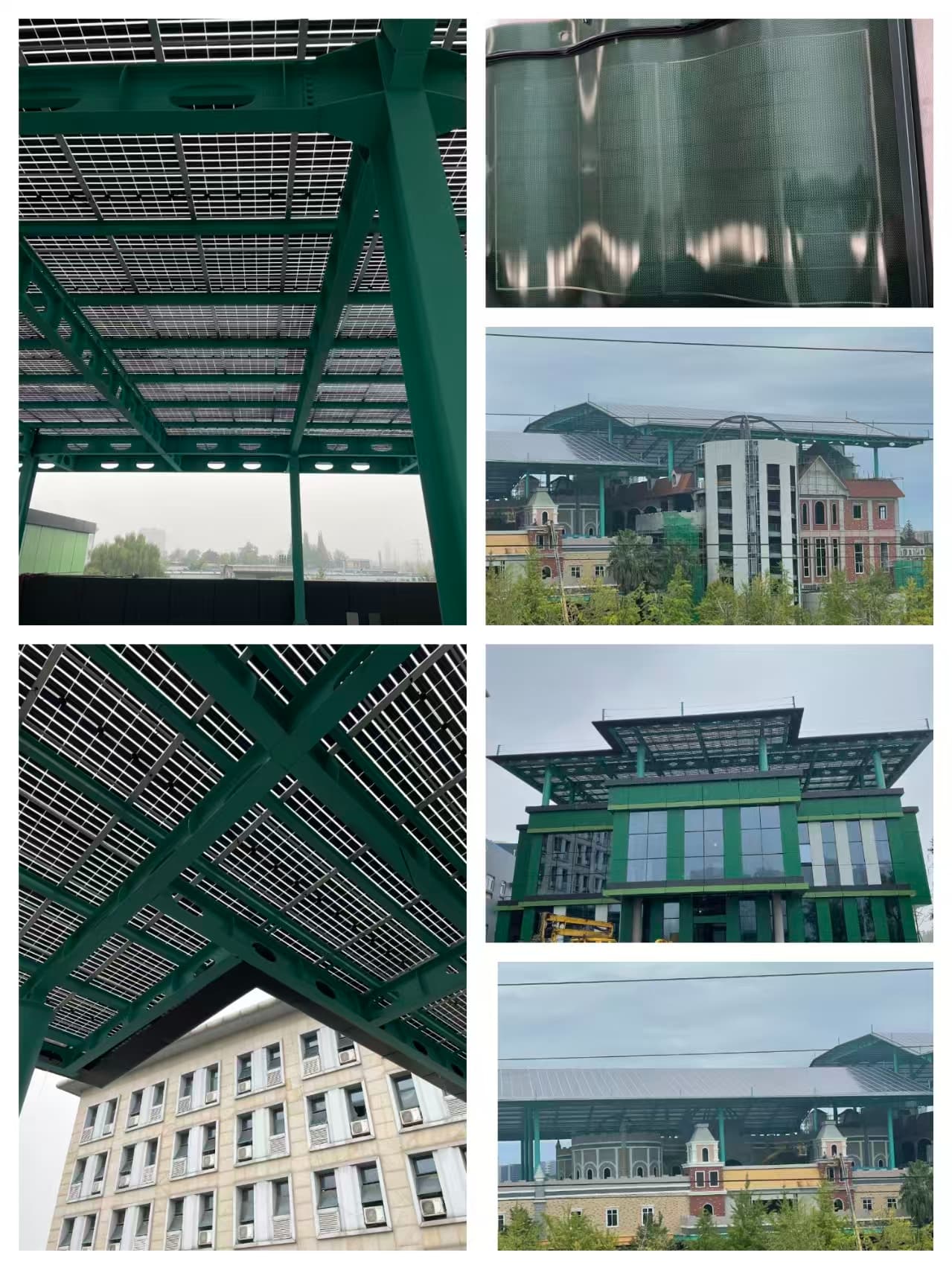

• Building-Integrated Photovoltaics (BIPV): Ideal for rooftops, façades, and other architectural integrations where aesthetics and performance are equally important.

• Commercial & Industrial Facilities: Suitable for large-scale warehouses, factories, and office buildings requiring stable, long-term energy solutions.

• Residential Projects: Provides homeowners with high-efficiency solar solutions that blend seamlessly into modern building designs.

• High-Temperature or Harsh Environments: The metal backsheet enhances durability and thermal management, making it suitable for areas with intense heat, humidity, or dust.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right product. We provide a robust ecosystem of support designed specifically for large-scale energy and construction projects, ensuring peace of mind from order placement to final commissioning.

• Stringent Quality Assurance: Every single module undergoes rigorous, multi-stage Grade A inspections to guarantee authenticity, flawless performance, and long-lasting durability before it ever leaves our facility.

• Agile Manufacturing Capabilities: With a standard lead time of just 5-7 business days for regular orders, our production lines are optimized to keep your project schedule on track without delays.

• Global Logistics Expertise: Our dedicated logistics team meticulously evaluates order size, destination, and urgency to select the safest and most cost-effective shipping routes, providing transparent tracking every step of the way.

• Dedicated Technical Support: From initial project scoping and quantity assessment to post-installation guidance, our expert customer service team works closely with you to ensure cost-efficiency and optimal system design.

FAQs

We understand that specifying components for major architectural projects requires precise information. Below are answers to the most common inquiries regarding our metal solar modules.

1. What is the Minimum Order Quantity (MOQ) and standard lead time?

Our standard MOQ is one pallet, which contains 33 units. For standard configurations, orders are typically processed and shipped within 5-7 business days following confirmation. For highly customized requests, our engineering team will provide a detailed production schedule during the quoting phase.

2. How does the Zn+Al+Mg metal backsheet improve panel longevity?

The zinc-aluminum-magnesium alloy provides superior corrosion resistance compared to traditional polymer backsheets. It acts as an excellent thermal conductor, rapidly dissipating heat away from the solar cells. This cooler operating temperature reduces thermal degradation and significantly extends the active lifespan of the module, especially in harsh climates.

3. Can the output cables be customized for specific facade installations?

Absolutely. While the standard 4.0mm² cables come in 300mm lengths for both positive and negative connections, we fully support length customization. This ensures seamless and tidy cable management regardless of your specific structural mounting requirements or junction box placements.

4. Are these modules compatible with standard architectural mounting structures?

Yes, they are engineered for high compatibility. The sturdy anodized aluminum frame can be easily integrated with a wide variety of certified support structures and mounting rails. We also offer an optional reinforced high-load frame for projects situated in extreme wind or snow load zones.

5. How do these panels assist in achieving LEED certification?

By directly generating high-efficiency renewable energy on-site, these modules drastically reduce a building's reliance on grid power and lower its overall carbon footprint. This on-site energy generation is a heavily weighted category in LEED and other green building certification frameworks, directly contributing to a higher sustainability rating.

6. What are the warranty terms for volume procurement?

We stand firmly behind our engineering with a standard 15-year warranty covering material and workmanship defects. Depending on the project scope and specific contractual agreements, this warranty can be extended up to 20 years, ensuring long-term security for your investment.
