The 6inch Solar Submersible Water Pump Kit from LNESOLAR is a fully integrated, off-grid water supply solution purpose-built for high-demand agricultural irrigation applications. This robust farm solar water pump system combines industry-leading submersible pump technology with optimized solar energy harvesting, delivering consistent water extraction from deep wells and boreholes where conventional surface pumps cannot reach. As a sustainable alternative to diesel-powered and grid-connected pumping systems, this agricultural solar water pumping kit eliminates ongoing fuel costs, reduces grid dependency, and ensures uninterrupted water access for remote farming operations. Designed for clients, the system delivers long-term ROI through minimal maintenance, low operational costs, and reliable long-term performance in harsh field conditions.

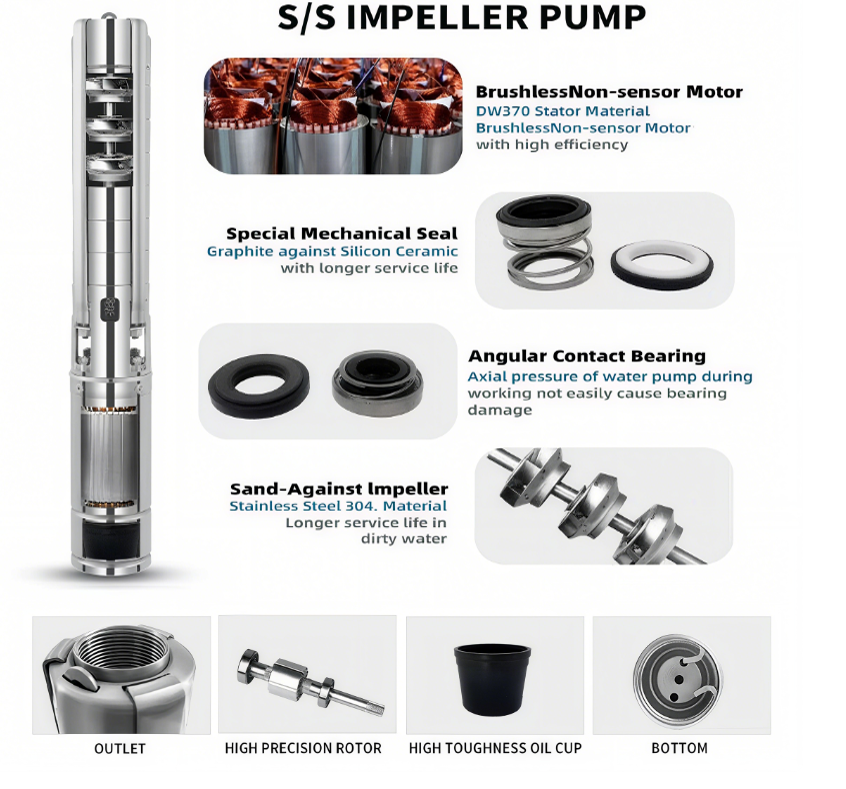

Engineered for harsh aquatic and agricultural environments, the 6-inch pump body adopts 304 stainless steel construction with corrosion-resistant components. The sand-resistant stainless steel impeller, graphite-silicon ceramic mechanical seal, and angular contact bearing effectively resist wear from sediment and dirty water, extending service life and reducing unplanned downtime for large-scale farming operations.
Equipped with a premium brushless non-sensor motor, this deep well solar submersible pump delivers exceptional energy conversion efficiency, maximizing water output even under variable solar radiation. The optimized hydraulic design supports a maximum flow rate of 65m³/h and a maximum head of 40m, fully meeting the water demand of large-scale agricultural irrigation projects.

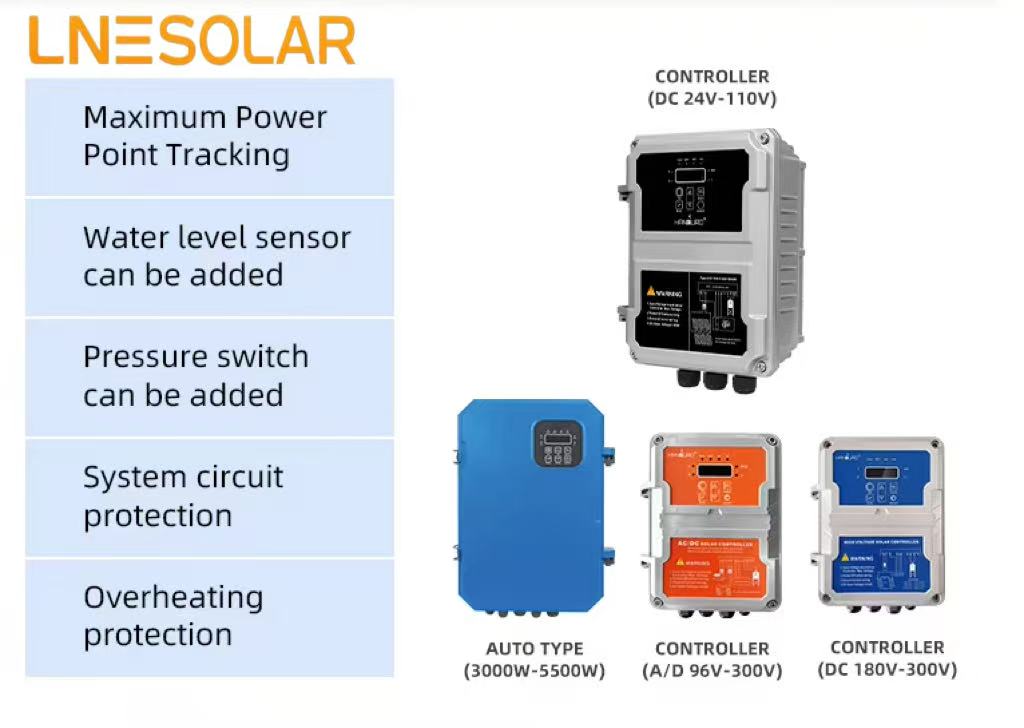

The integrated Maximum Power Point Tracking (MPPT) controller supports a wide DC voltage range, with built-in overheating protection, circuit protection, and expandable functions including water level sensors and pressure switches. Fully automatic operation eliminates the need for manual intervention, reducing labor costs for users while ensuring stable system operation.

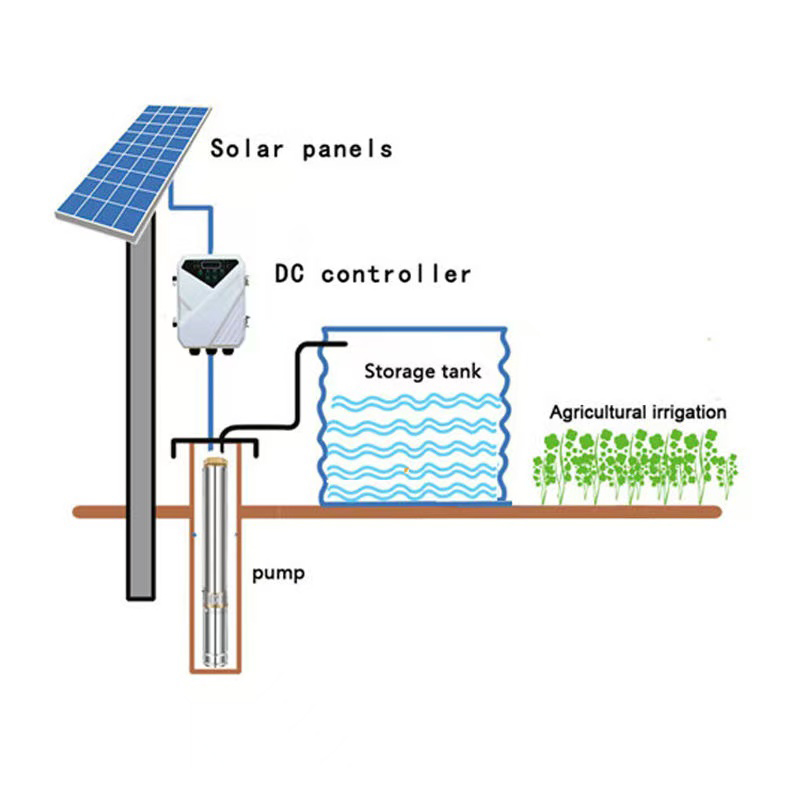

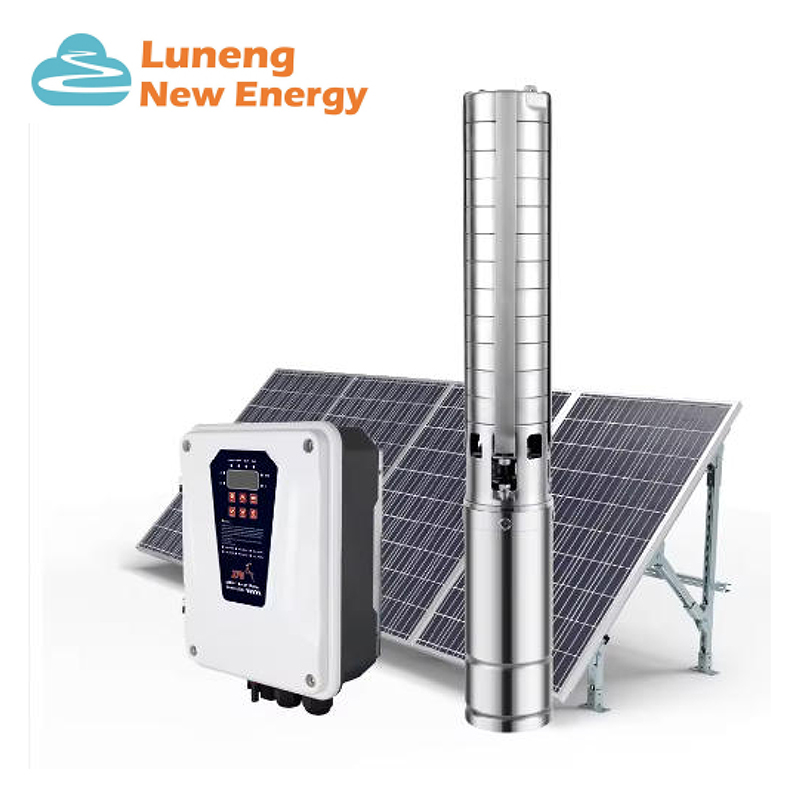

This off-grid solar irrigation pump kit includes the submersible pump, size-matched solar array, MPPT controller, and all necessary installation accessories. The simplified design enables fast on-site deployment, cutting installation time and engineering costs for agricultural project contractors.
Parameter | Specification |
Model | LNE-6SSC65-40-530-4000-A/D |
Rated Power | 4KW/5.5HP |
Max. Flow Rate | 65m³/h |
Max. Head | 40m |
Outlet Diameter | 3 inch |
Standard Cable Length | 2m |
Controller Type | MPPT Auto Controller |
Controller Voltage Range | DC 24V-300V |
This 6inch solar submersible water pump kit is ideal for use cases including: large-scale field crop irrigation, commercial orchard and plantation water management, agricultural borehole groundwater development, intensive livestock farm water supply, and farming operations in drought-prone off-grid areas. The system seamlessly integrates with existing drip irrigation, sprinkler, and water storage infrastructure, making it a versatile upgrade for established agricultural water systems.
All LNESOLAR solar pump systems comply with international agricultural machinery and electrical safety standards. We offer a standard 12-month comprehensive warranty for the complete farm solar submersible water pump kit, with customizable extended warranty options for bulk orders. Our dedicated technical team provides full after-sales support, including installation guidance and maintenance training for commercial clients.
Unlike surface pumps, this deep well solar submersible pump operates fully submerged in water sources, enabling extraction from deep wells and boreholes far beyond the suction limit of surface units, with higher efficiency for deep-water agricultural irrigation.
The full turnkey kit includes the 6-inch submersible pump, size-matched solar panel array, MPPT controller, all required cabling, and standard installation accessories, ready for immediate on-site deployment.
Yes. The pump’s outlet is compatible with all standard irrigation systems, including drip lines, sprinkler networks, and water storage tanks, enabling seamless integration with your established agricultural setup.
