Product advantage
Power Generation & Efficiency
Dual - side Power Gain: Captures sunlight on both sides. Absorbs scattered and reflected light, boosting power generation by 10% - 30% vs single - side panels.
Ultra - low Degradation: Shows ≤1% first - year power loss, 3%+ long - term higher output than P - type. LID/LeTID are minimal.
Strong Low - light Performance: With ~ - 0.29%/℃ temperature coefficient, works longer in dawn/dusk/rain, utilizing limited light.
Reliability & Stability
Rigorous Test Passed: Survives IEC tests (PID, humidity, mechanical load), stable in extreme conditions.
Lower Hot - spot Risk: Innovative half - cell tech cuts hot - spot chances. Paired with dual - glass, resists cracks/corrosion for 25+ years.
Thermal Management
Effective Cooling: Back - side exposure enhances heat dissipation, lowering temp and reducing power loss from heat.
Cost - effectiveness
System Cost Cut: Reduces BOS costs (racks, land) for same power. Fewer racks or less land needed.
Higher ROI: Lower LCOE (≥10% drop) and higher IRR via high power, low degradation. Boosts investor returns.
Environmental Adaptability
Wide Application: Fits ground stations (uses ground reflection), industrial/commercial projects (high per - area profit), harsh areas (deserts, coasts) with dual - glass anti - sand/salt - fog design.
Technical Parameters
| Cell size | 182mmx182mm |
| Type | PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON |
| Panel Efficiency | 22% |
| Place of Origin | Chengdu, China |
| Panel Dimensions | 2278113435 |
| Brand Name | LNE Solar |
| Front Side Glass | High transparency solar glass 2.0mm |
| Back Side Glass | High transparency solar glass 2.0mm |
| Frame | Silver / Black, anodized aluminium alloy |
| Junction Box | IP68 Rated, 3 Diodes |
| Cables | 4.0mm2, Portrait: 300mm / Landscape: 1200mm |
| Wind/Snow Load | 2400Pa/5400Pa |
| Connector | MC Compatible |
| MC Compatible | Residencial,Commercial & Industry |
Product uses

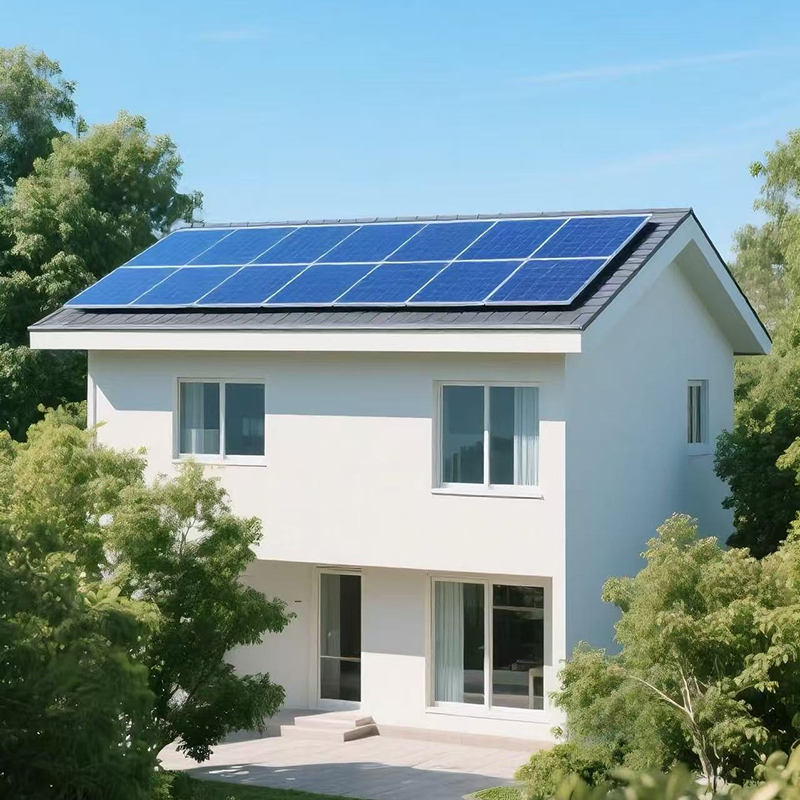

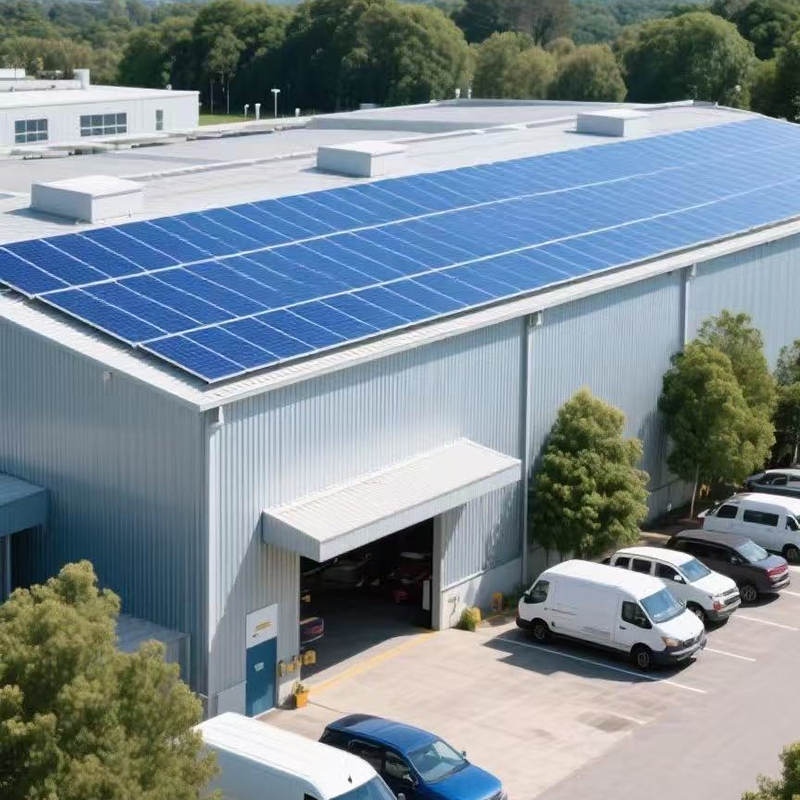

| Solar panels for home | solar panel for industrial and commercial business |
![]() | ![]() |
FAQ
Q: Can you provide installation guidance after purchase? Do you recommend supporting installation accessories?
A: We can provide free installation manuals and video tutorials. We can also coordinate with cooperative installation teams to offer on-site guidance (an additional service fee is required). Meanwhile, we can recommend suitable accessories such as brackets, inverters and junction boxes to ensure the compatibility of the entire system.
Q: What does the after-sales service include? How to handle product quality problems?
A: The after-sales guarantee we provide: Within the product warranty period (usually 25-year power warranty + 10-year product warranty), if there are non-human-induced quality problems, we can provide free replacement or repair.
Q: What is the delivery time? Can goods be shipped quickly if they are in stock?
A: The delivery time depends on the order quantity, and we need to confirm the stock first. If goods are in stock, shipment can be arranged within 3-7 days; if goods need to be transferred or customized, the delivery cycle is 15-30 days (subject to the order confirmation form).
