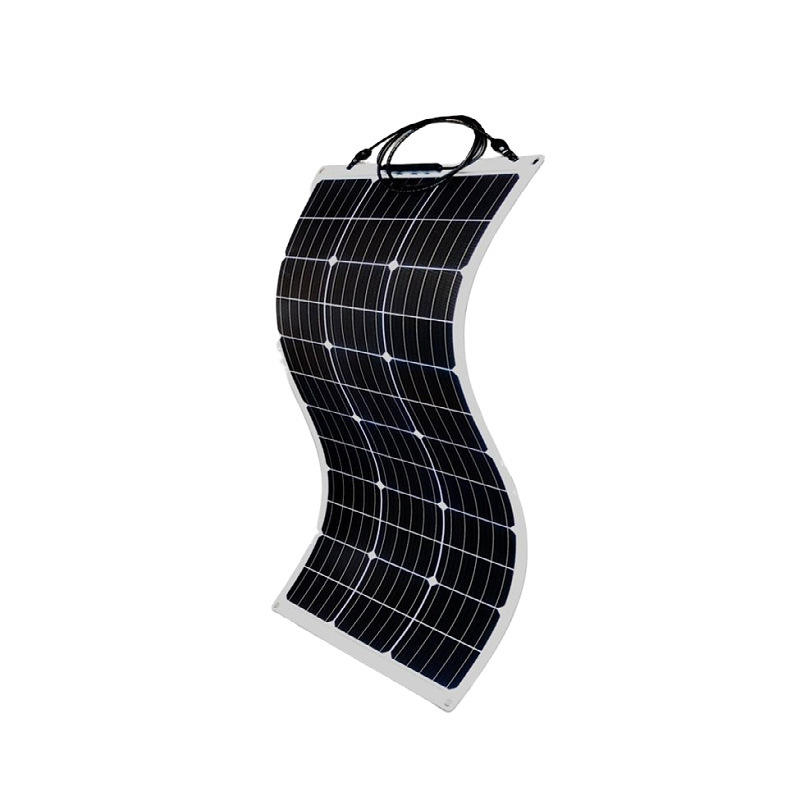

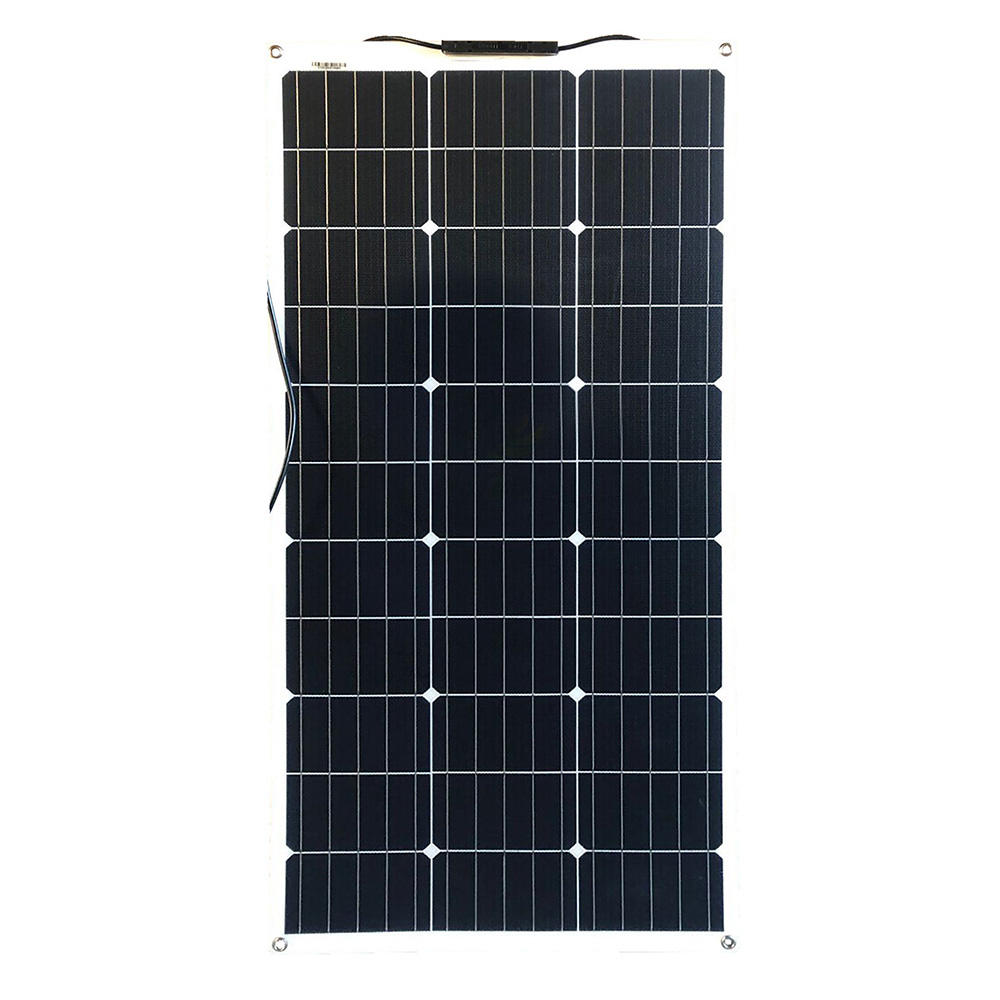

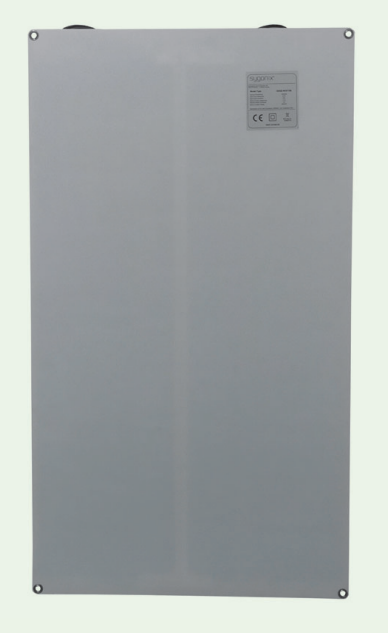

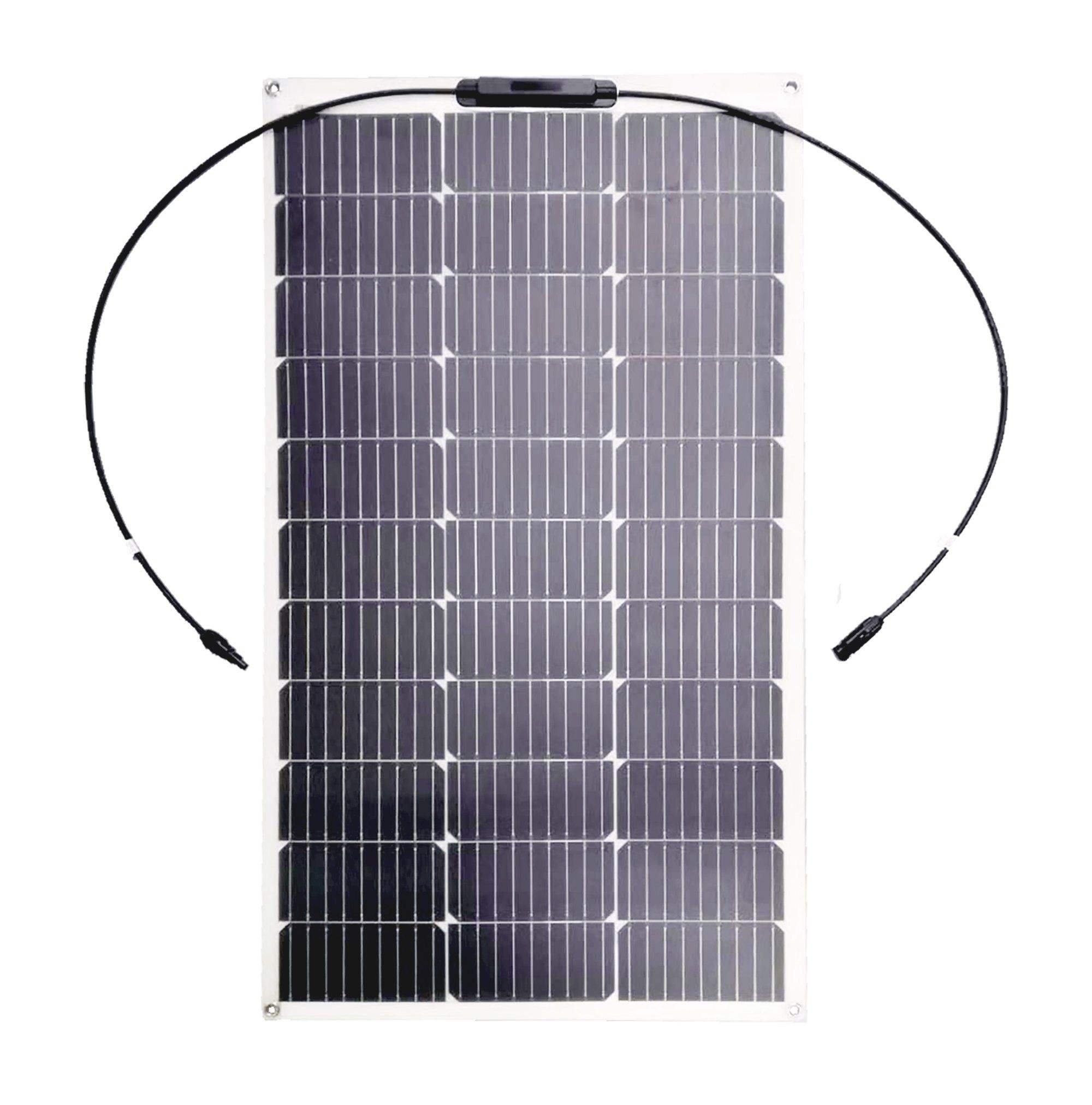

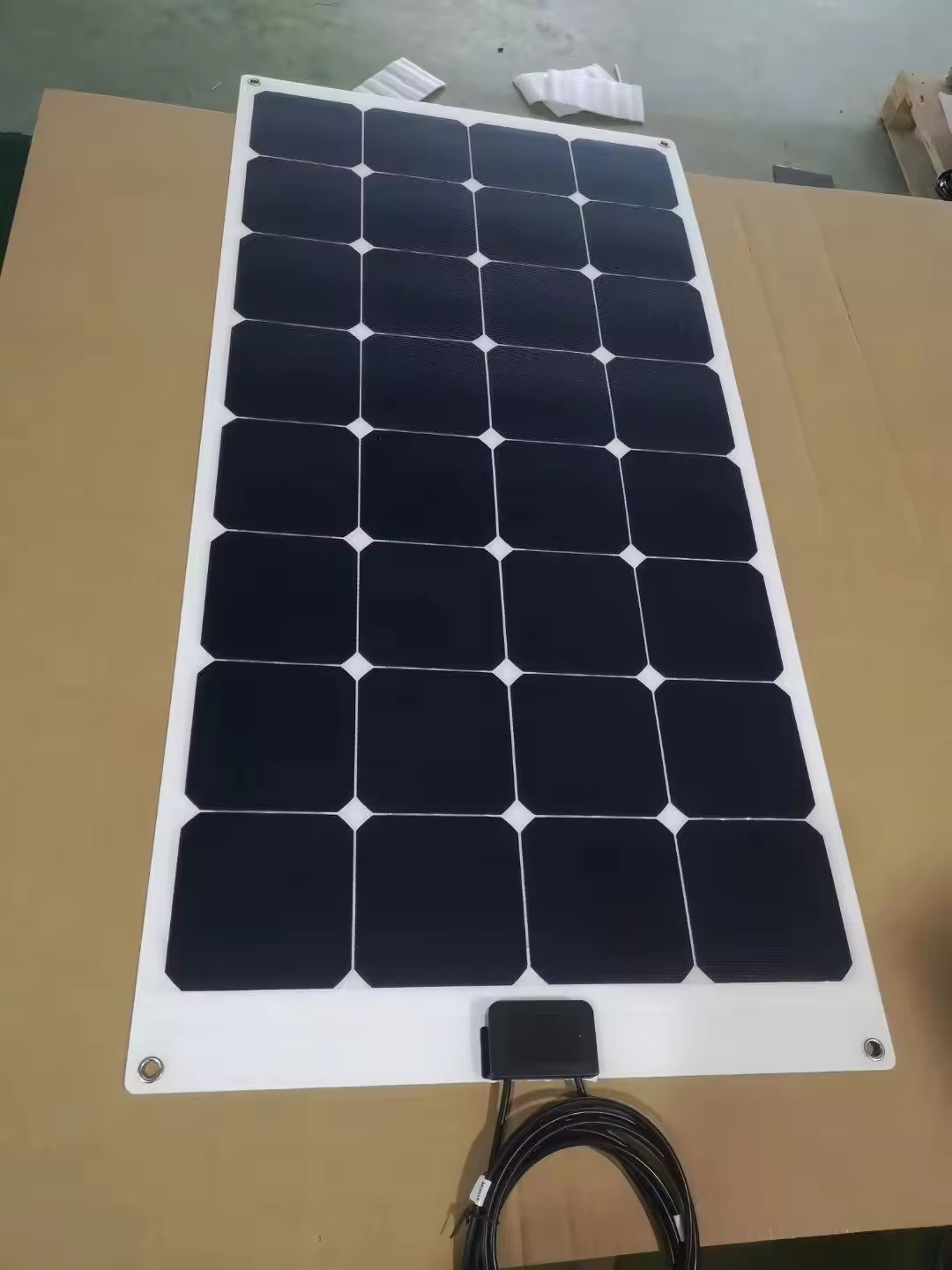

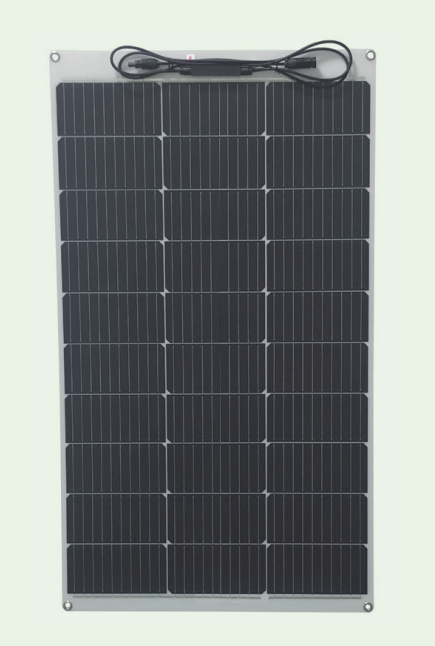

LNEZ-M101000
STC Electrical Parameters
Parameter | Value 1 | Value 2 |
Maximum Power (Pmax) | 100 | 105 |
Open-Circuit Voltage (Voc) | 20.5 | 20.7 |
Voltage at Max Power (Vmp) | 17.2 | 17.3 |
Short-Circuit Current (Isc) | 6.3 | 6.6 |
Current at Max Power (Imp) | 5.8 | 6.1 |
Power Tolerance | ±3% | ±3% |
Module Color | Black | Transparent/White |
Parameter | Value |
Module Operating Temperature | -40°C ~ 85°C |
Max System Voltage (V) | 1000 DC |
Application Class | Class A |
Temperature Coefficient of Pmax | -0.38%/°C |
Temperature Coefficient of Voc | -0.36%/°C |
Temperature Coefficient of Isc | 0.07%/°C |
Product Specifications
Parameter | Value |
Number of Cells (Pcs) | 30 (3×10) |
Dimensions (mm) | 1010×570×1.8 |
Module Weight (kg) | 1.5 |
Product Color | Transparent/White/Black |
Frame | None |
Junction Box | IP68 |
Key Benefits
High-precision measurement for reliable data.
Robust design suitable for demanding environments.
Simple installation and low maintenance.
Stable performance and long service life.
Usage Instructions
Install the device in the specified location, ensuring proper mounting.
Connect the power and signal cables according to the wiring diagram.
Power on the device and verify its initial status is normal.
Configure basic parameters if necessary for your application.
The device is now operational and will begin measuring/data collection.
Application Scenarios
Industrial process monitoring and control systems.
Environmental data collection and analysis.
Equipment status monitoring and predictive maintenance.
Integration into larger IoT and automation solutions.
FAQs
What is the operating voltage range?
The standard operating voltage is 24V DC (check datasheet for specific range).
What is the signal output type?
It typically supports 4-20mA analog output and/or MODBUS RTU communication.
What is the measurement accuracy?
Please refer to the product datasheet for the specific accuracy rating of your model.
Is it suitable for outdoor use?
Yes, it features an IP-rated enclosure for protection against dust and moisture.
How do I perform calibration?
Basic calibration can be done via the configuration software; refer to the manual for detailed procedures.
Where can I find the technical datasheet?
The full datasheet is available for download on the product page on our official website.
